Servo Lead Edge Feeding Carton Rotary Die Cutting Machine

Servo Lead Edge Feeding Carton Rotary Die Cutting Machine

  • FOB Price:US $36,000 -63,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 5 Sets per Month
  • Port: Qingdao
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-11-21
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  7
  • Place of Origin:  Shandong
  • Brand Name:  Liansheng Auto
  • Model Number:  MR
  • Weight: 5800.000 kg

1, Feeding Unit


a, Combined with more than 20 years of practical experience, adopts the world's most stable German Bosch-Rexroth servo control system. The servo control system, with electronic cam technology instead of a complex mechanical cam, a thorough solution to solve the problem that the mechanical cam cannot eliminate the gap between gears, thus ensures the accuracy of positioning and feeding. The Servo control owns many advantages, including faster response, higher resolution, and better stability. It has long been widely used in Europe.
One servo motor drives the feeding sun wheels.
Vacuum fans generate strong force pulling the cardboard to the feeding table.
b, Servo Lead edge feeding is suitable for Class E Cardboard and poor strength cardboard, especially various artificial filmed cardboard.
c, Feeding unit sends the cardboard into the machine, Pulling unit (upper roller covered with flexible material, the bottom is anilox) send the cardboard into the die cut unit.
d, Uses vacuum system and our own designed programme, the cardboard will be sent to the die-cutting unit smoothly; vacuum adjustable by FCI ensures the accuracy when dealing different types of cardboard.
e, Both guiding plates can be adjusted by electric, fast and accurate.

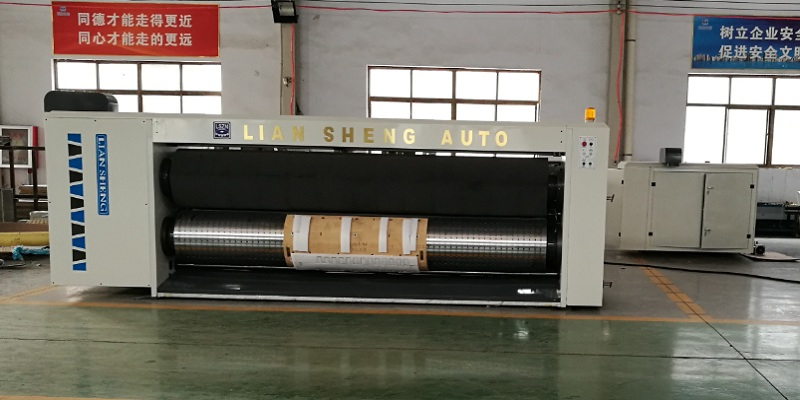

2, Die-Cutting Unit


a, All helical gears, special alloy steel.
b, Die-cutting wall plates are made of high-quality cast iron, manufactured by CNC machining.
c, Automatic spray lubricating system, greatly improves the operation accuracy and service life, reduces equipment running noise;
d, Rollers are made of high-quality steel, internal quenched and tempered, surface ground, hard chromed and well balanced, improves the running condition.
e, Anvil cover imported from the US, CUE brand, quick and easy installation or replacement, cutting smoothly and capable of more than 16 million times operation, according to the current statistics Maximum goes nearly 20 million times.
f, The anvil is equipped with a hydraulic axial moving device, with a distance of 40mm, the movement speed is smooth and appropriate, avoid damaging the anvil cover and when it's moving, its speed synchronously with the speed of the rollers.
g, Equipped with anvil cover repairing unit, 4-5 times repairs, profitable and improves the product quality.
h, Speed compensation system, automatically adjusts the linear speed of the rollers.
i, Die cutting phase can be adjusted by the servo system, through the touchscreen, simple and convenient.




3, Control Unit

Servo system: Bosch-Rexroth
Servo Motor: Rexroth
Driving: Rexroth
Frequency Converter: Rexroth
Relay: Omron Photoelectric switch: Omron
Switch: Siemens
Circuit breakers: Siemens
Contactor: Siemens

  • Size:  7
  • Place of Origin:  Shandong
  • Brand Name:  Liansheng Auto
  • Model Number:  MR
  • Weight: 5800.000 kg

Technical Parameters

Model

MR116A

MR120A

MR124A

Max Speed (sheet/min)

180

180

180

Eco Speed (sheet/min)

140-160

140-160

140*160

Max Feeding Size (mm)

1250×1700

1250×2100

1250×2500

Max Die-Cutting Size(mm)

1200*1600

1200*2000

1200*2400

Min Die-Cutting Size (mm)

400×600

400×600

400*600

Suitable Cardboard Thickness (mm)

2--11

2--11

2--11

Precision (mm)

±1

±1

±1

Power(KW)

7.5

7.5

15
